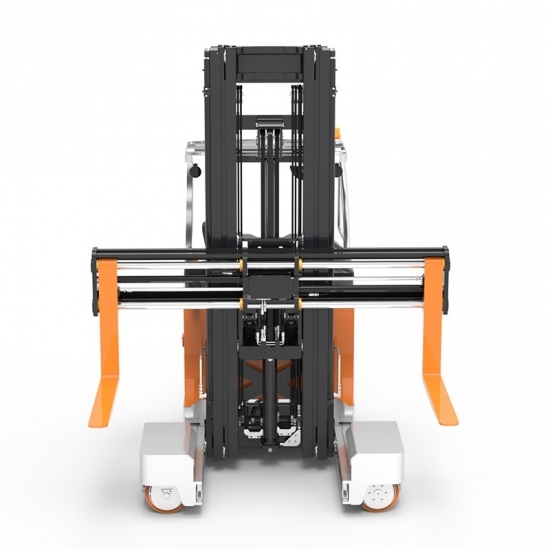

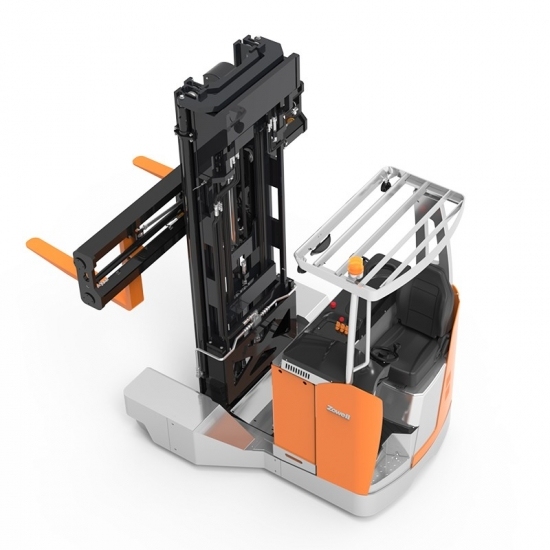

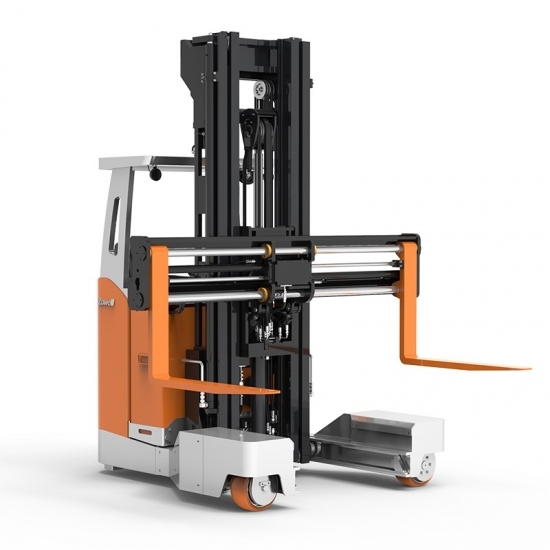

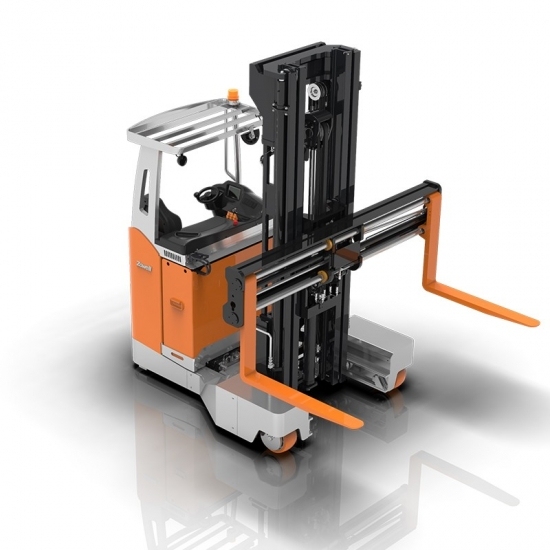

2.5 ton Electric Multi-directional Forklift with Fork Positioner
Fork Positioner
Fork width is optional. Fork outer width is adjustable up to 400-2200mm; The adjustable width varies with the load capacity.

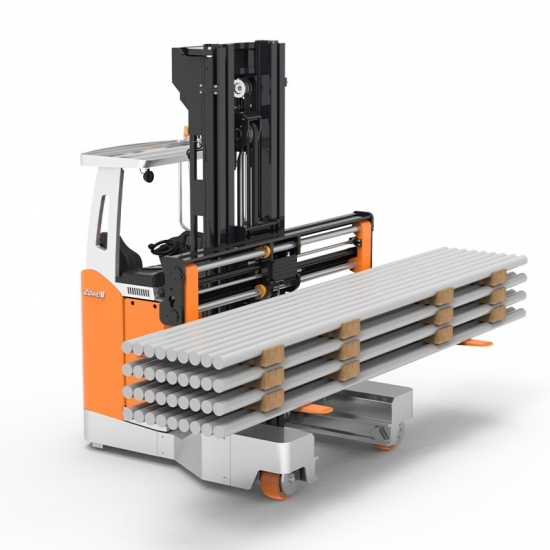

It is suitable for long cargos and diversified in length, and the specifications are varied;
Advantages: stable pitch adjustment, wide application range (aisle width will be increased slightly).
Specification
| Technical data for full directional forklift | ||||
| Identification | 1.1 | Manufacturer | Suzhou pioneer | |
| 1.2 | Brand | Zowell | ||
| 1.3 | Model | RSEW225S | ||
| 1.4 | Power supply | Electric | ||
| 1.5 | operation type | half closing sitting | ||
| 1.6 | Load capacity | Q(kg) | 2500 | |
| 1.7 | Load center | C(mm) | 600 | |
| 1.8 | Front overhang | x(mm) | 175 | |
| 1.9 | Wheelbase | y(mm) | 1700 | |
| weight | 2.1 | Truck weight（Include battery） | kg | 4400 |
| 2.2 | Battery weight（±5%） | kg | 920 | |
| tyres | 3.1 | Tyres Front/Rear | PU | |
| 3.2 | Front load wheels（Diameter×Width）Single wheel | mm | φ300×135 | |
| 3.3 | Rear driving wheel（Diameter×width) Single wheel | mm | φ343×140 | |
| 3.4 | Wheel quantity Drive wgeel/Load wheel | pcs | 1X/2 | |
| 3.5 | Front wheels distance | b3(mm) | 1392 | |
| Dimensions | 4.1 | Lifting height | mm | 4500-10000 |
| 4.2 | Fork tilting front/rear | α/β(°) | 2/4 | |
| 4.3 | Lifting height | h1(mm) | See attachment | |
| 4.4 | Overhead guard height | h5(mm) | 2190 | |
| 4.5 | Seat height/Operation platfom height | (mm) | 1100/1350 | |
| 4.6 | Min groundcleance | 32 | ||
| 4.7 | Chassis groundcleance | h8(mm) | 75 | |
| 4.8 | Left and right leg height | h10(mm) | 447 | |
| 4.9 | Overall length（include fork） | l1(mm) | 2496 | |
| 4.10 | Reach distance | l2(mm) | 672 | |
| 4.11 | Overall width | b1(mm) | 1728 | |
| 4.12 | Fork dimensions | l/e/s(mm) | 1070/100/45 | |
| 4.13 | Tail width | b2(mm) | 1230 | |
| 4.14 | Fork width | b5(mm) | 355-880 | |
| 4.15 | Shelf width | b7(mm) | 870 | |
| 4.16 | Minimum turning radidus | Wa(mm) | 1952 | |
| 4.17 | Minimum radius of turn in situ(when b5≤880mm) | （mm） | 1304 | |
| 4.18 | Minimum turning aisle width(right Angle) | (mm) | 2100 | |
| 4.19 | Minin aisle width when side moving Pallet 3000×1200×1000(C=600mm) | (mm) | 2830【1】 | |
| 4.20 | Minin aisle width when side moving Pallet 3000×1000×1000(C=500mm) | (mm) | 2630【1】 | |
| Performance | 5.1 | Driving speed Loaded/unloaded | km/h | 8/10 |
| 5.2 | Lifting speed Loaded/Unloaded | mm/s | 200/370 | |
| 5.3 | Lowering speed Loaded/unloaded | mm/s | 210/170 | |
| 5.4 | Gradeability Loaded/unloaded | %(tanθ ) | 8/15 | |
| 5.5 | Brake | electric | ||
| 5.6 | Park | electric | ||
| 5.7 | Mode switch | HMI touch screen | ||
| 5.8 | Drive wheel position display | All Wheel show | ||
| Electric Motor | 6.1 | Driving motor type | AC | |
| 6.2 | Driving motor(S2-60min) AC | kw | 7 | |
| 6.3 | Lifting motor type | AC | ||
| 6.4 | Lifting motor，(S3-15%) | kw | 12.5 | |
| 6.5 | Steering motor type | AC | ||
| 6.6 | Steering motor | kw | 0.7 | |
| 6.7 | Battery voltage/capacity | V/Ah | 48/560 | |
| optional | 8.1 | Video display | Wireless camera | |
| 8.2 | Four forks + wide fork holder | customizable | ||
| 8.3 | Fork Positioner | customizable | ||
| 8.4 | AGV | customizable | ||
| remark | [1] At this time, the total safety distance of the channel is 200mm, with 100mm on each side; When selecting the fork Positioner, the expression parameters of the channel are increased by 100mm. Optional wide fork + four fork holder, channel unchanged. | |||
| The parameters listed in the above table are the parameters of standard models, and the above parameters will be changed when non-standard customized; the company reserves the right to modify the parameters listed in the above table! ! ! | ||||
