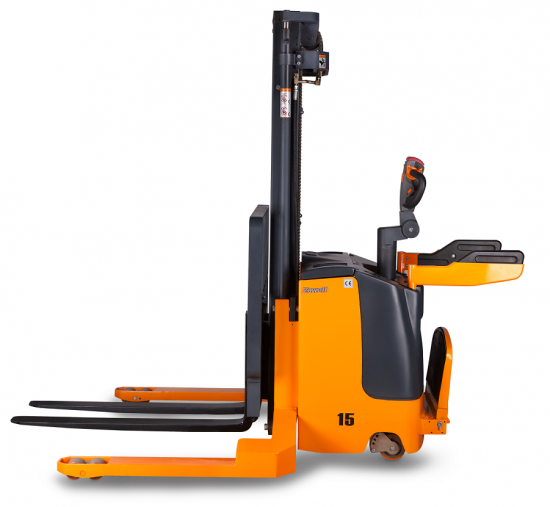

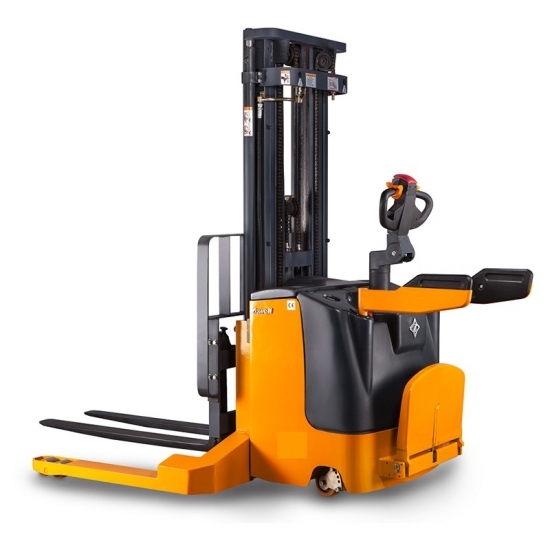

Features of XEK Electric Straddle Stacker:
1.Germany Mannstaedt forklift profile for mast building.
2.swIss brand or ITALY hydraulic pump.
3.Regenerative braking function
4.CURTIS electronic controller
5.Germany Frei handle
6.Battery side extraction: The side gate and the battery cover are openable.Battery can be removed from the side, making it very convenient to replace and maintain batteries.
7.Emergency reversing device in the handle improves operation safety.
8.Emergency power disconnection switch.
9.Braking applied with handle upright and horizontal position, increasing the safety of the truck.
10.Built-in pressure relief valve protects this electric straddle stacker from overloading,thereby increasing its reliability.11.The mast and frame are dividable and exchangeable.
| Specification for 2 ton Electric Straddle Stacker | ||||
| Identification | Product model | XEK20 | ||
| Power supply | Electric | |||
| Operating type | Standing | |||
| Load capacity | Q kg | 2000 | ||
| Load center distance | C mm | 600 | ||
| Load distance | X mm | 393 | ||
| Wheelbase | Y mm | 1386 | ||
| Dimensions | Height with mast closed | h1 mm | 2055 | |
| Free lifting height | h2 mm | 0 | ||
| Lifting height | h3 mm | 3000 | ||
| Max height, max fork height | h4 mm | 3991 | ||
| Forks height, lowered | h5 mm | 40 | ||
| Height of handle in drive position (Max/Min) | h6 mm | 1390/1130 | ||
| Overall length | L1 mm | 2051 | ||
| Length to face of forks | L2 mm | 988 | ||
| Inside width at the end of leg | b2 mm | 1270 | ||
| Overall width | b1 mm | 1510 | ||
| Fork dimensions | s/e/l mm | 100/40/1070 | ||
| Forks width | b3 mm | 200-800 | ||
| Min. ground clearance | m mm | 30 | ||
| Aisle width for pallets 800x1200 lengthways | Ast mm | 2643 | ||
| Turning radius | Wa mm | 1682 | ||
| Electric Motor | Drive motor rating | kw | AC 1.5 | |
| Lift motor rating | kw | 3 | ||
| Battery voltage / nominal capacity | V/Ah | 24/210(210\240\280) | ||
| Battery weight | kg | 200\205\295 | ||
