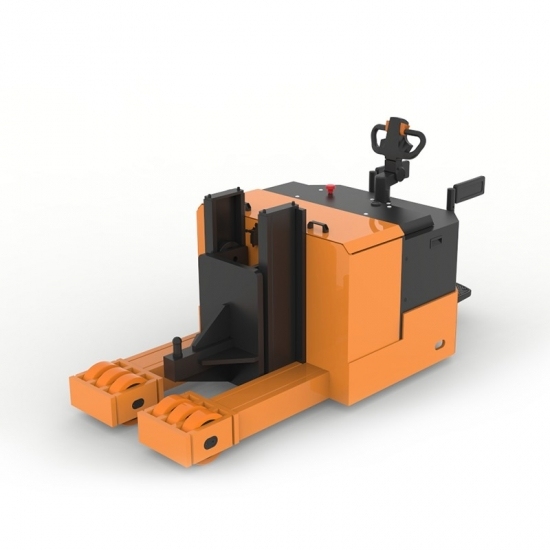

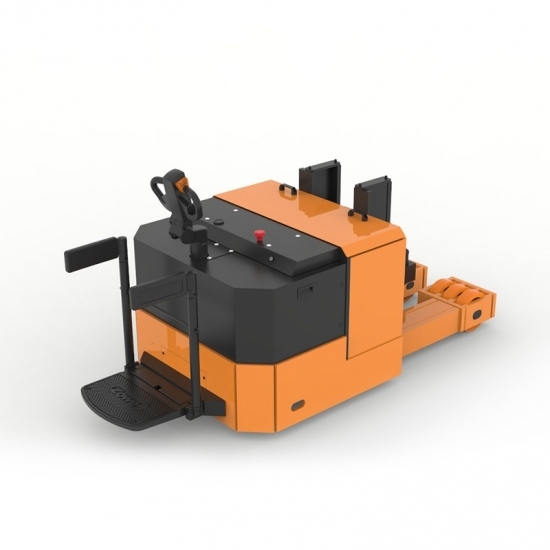

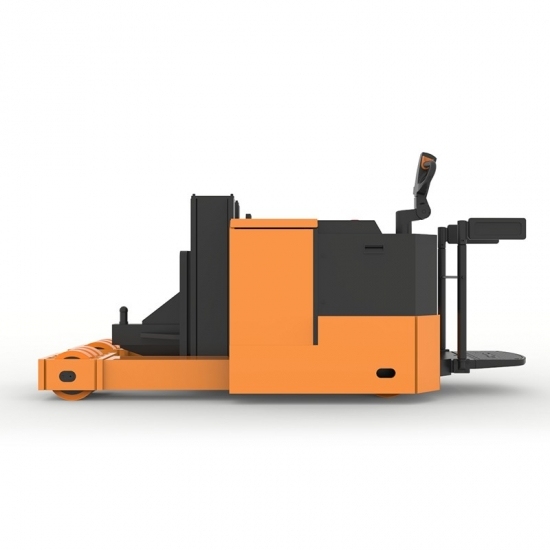

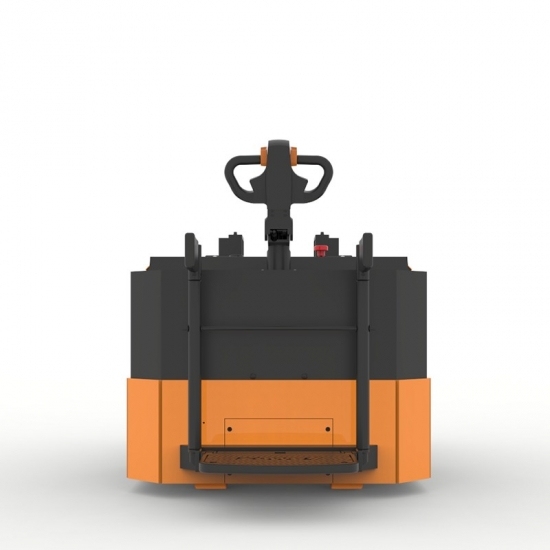

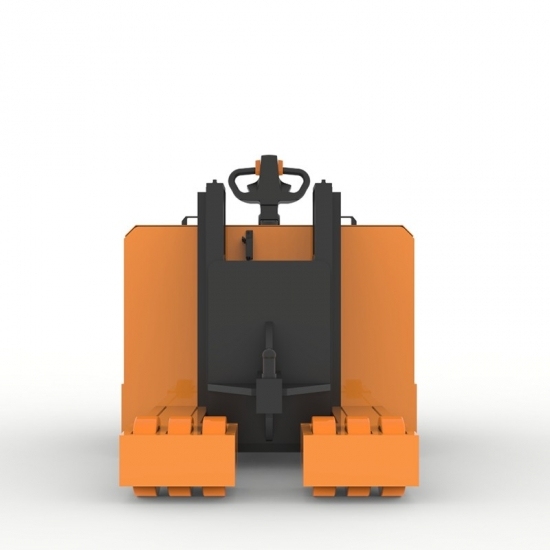

20 Ton Electric Towing Tractor
| XTB200A | ||||
| Identification | 1 | Product Model | XTB200A | |
| 2 | Power supply | Electric | ||
| 3 | Operating type | Standing on | ||
| 4 | Load capacity | Q kg | 20000 | |
| 7 | Wheelbase | L2 mm | 1704 | |
| weight | 1 | Weight (without battery) | kg | 2690 |
| Wheel | 1 | Tyres | PU | |
| 2 | Tyre size drive end | mm | Ф312x140 | |
| 3 | Type size load end | mm | Ф267x76 | |
| 5 | Wheels number (x=drive wheel) drive end/load end | 2x/6 | ||
| 6 | Tread width drive end | mm | 553 | |
| 7 | Tread width load end | mm | 593 | |
| Dimensions | 1 | Total height | h1 mm | 1394/1290 |
| 2 | Lift height | h4 mm | 690 | |
| 4 | platform height | h5 mm | 200 | |
| 5 | Height of handle in drive position (Max/Min) | h1/h2 mm | 1394/837 | |
| 6 | armrest height | mm | 988 | |
| 6 | Overall length | L1 mm | 2707 | |
| 8 | Overall width | W1 mm | 1220 | |
| 9 | Diameter of Drawing head | mm | 50 | |
| 11 | Minimum ground clearance | h6 mm | 60 | |
| 12 | Turning radius | Wa mm | 3881 | |
| Performance | 1 | Travel speed loaded/unloaded | km/h | 5/6 |
| 2 | Lift speed loaded/unloaded | mm/s | 20/30 | |
| 3 | Lowering speed loaded/unloaded | mm/s | 30/20 | |
| 4 | Max gradeability loaded/unloaded | % | 5/15 | |
| 5 | Service brake | Electromagnetic | ||
| Electric Motor | 1 | Drive motor rating | kw | 4.5 |
| 2 | Lift motor rating | kw | 5.5 | |
| 3 | Battery voltage / nominal capacity | V/Ah | 48/XXX | |
| 4 | Battery weight | kg | XXX | |
| Others | 1 | Type of drive control | MOSFET Control | |
| 2 | Noise level at operator’s ear | dB(A) | <70 | |
