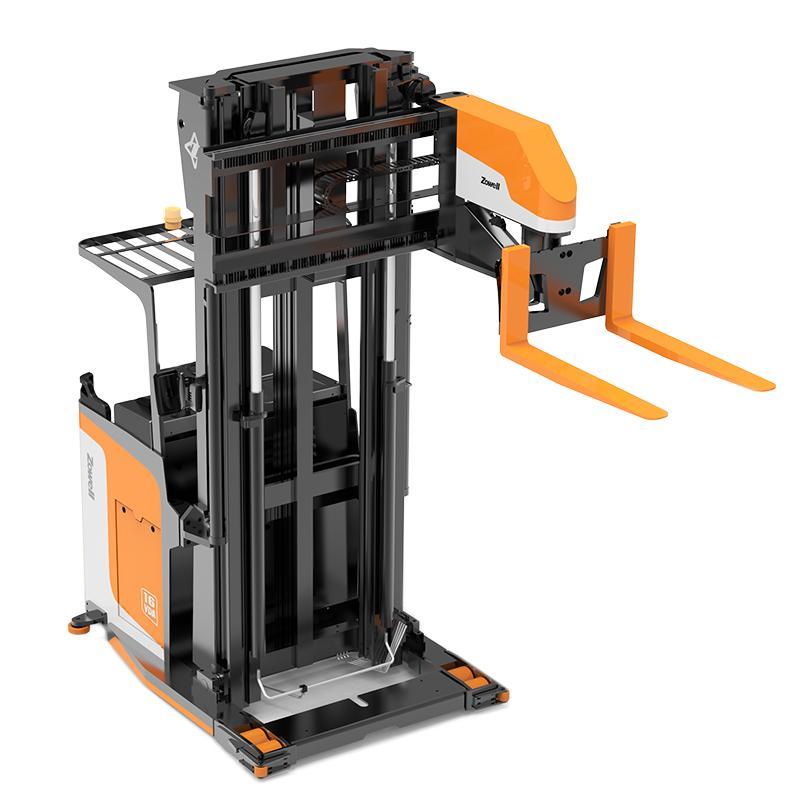

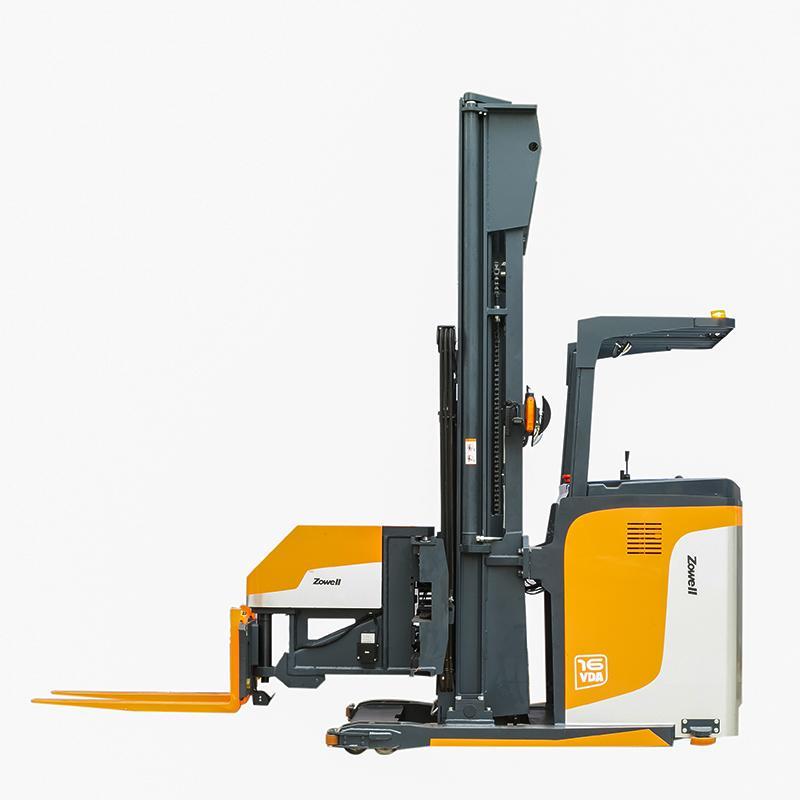

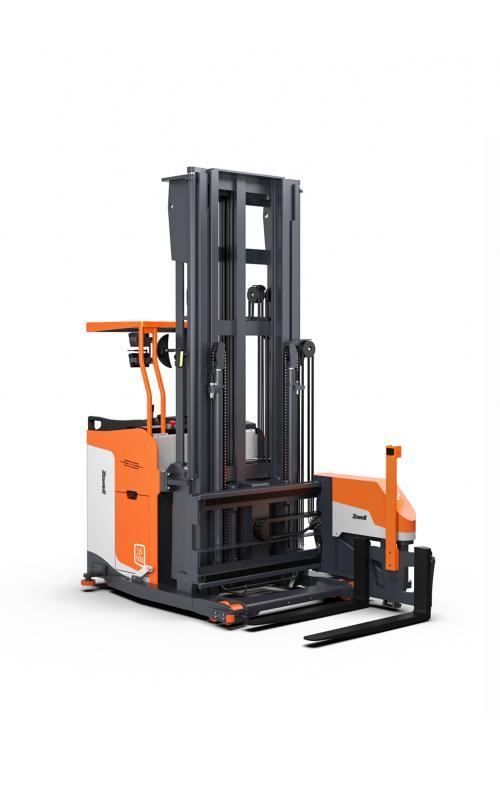

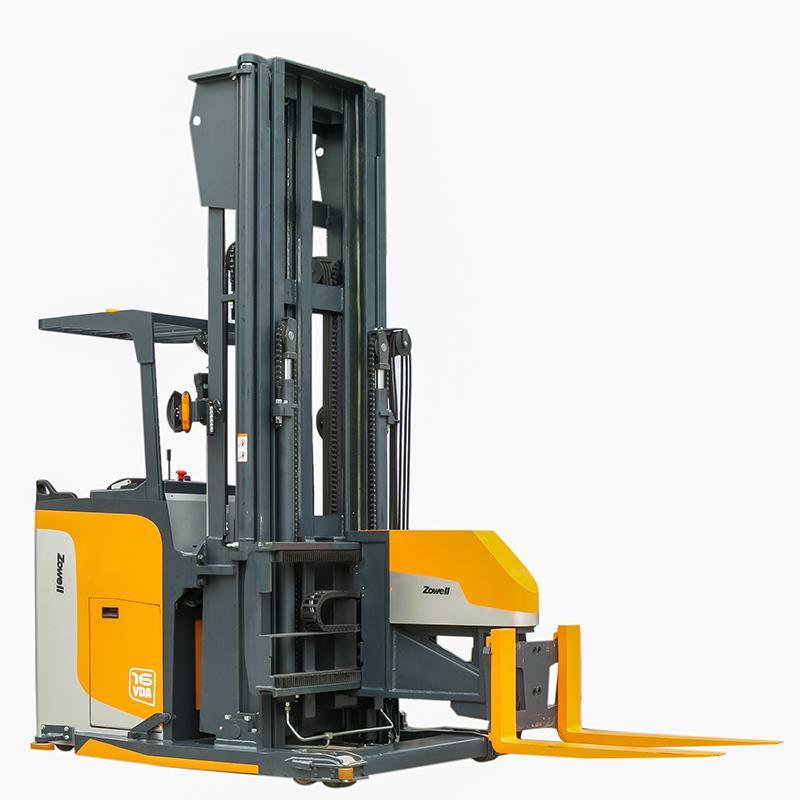

1.6 ton Man Down Type Tri-lateral Electric VNA Forklifts
| Identification | 1.1 | manufacture | Zowell | |
| 1.2 | Brand | Zowell | ||
| 1.3 | Model | VDA116S | ||
| 1.4 | Power supply | Electric | ||
| 1.5 | Driving type | Standing on | ||
| 1.6 | Load center | Q(kg) | 1600 | |
| 1.7 | Wheelbase | C(mm) | 600 | |
| 1.8 | Wheelbase | y(mm) | 1700 | |
| weight | 2.1 | Truck weight（Include battery） | kg | 5450 |
| 2.2 | Battery weight（±5%） | kg | 735 | |
| Tyres | 3.1 | Tyres type Front wheel/Rear wheel | PU | |
| 3.2 | Front load wheels（Diameter×width) | mm | φ140×127 | |
| 3.3 | Rear driving wheel（Diameter×width) | mm | φ380×165 | |
| 3.4 | Tyres quantity (Drive/Load wheel/univeral wheels) | pcs | 1X/4/2 | |
| dimensions | 4.1 | Lifting height | mm | 3000-9500 |
| 4.2 | Fork rotation degree | ° | 180 | |
| 4.3 | Mast closed height | h1(mm) | See table | |
| 4.4 | Overhead guard height | h5(mm) | 2260 | |
| 4.5 | Platform height for standing | (mm) | 355 | |
| 4.6 | Min ground clearance | h8(mm) | 45 | |
| 4.7 | Overall length （fork in side position） | l1(mm) | 2945 | |
| 4.8 | Overall width（with guide wheels） | b1(mm) | 1550 | |
| 4.9 | Fork dimensions | l/e/s(mm) | 1200/122/50 | |
| 4.10 | Rear chassis width | b2(mm) | 1190 | |
| 4.11 | Fork width | b5(mm) | 425-750 | |
| 4.12 | Min turning radidus(go straight) | Wa(mm) | 1980 | |
| 4.13 | Min main aisle size | （mm） | 3800 | |
| 4.14 | Min aisle width(length×width) 1200×1000 |
（mm） | 1600 |
