| Specificattion | |||||
| Identification | 1 | Product Model | XTB60 | ||
| 2 | Power supply | Electric | |||
| 3 | Operating type | Pedestrian/Standing on | |||
| 4 | Load capacity | Q （t） | 6 | ||
| 5 | Traction weight | F （N） | 1250 | ||
| 6 | Wheelbase | Y （mm） | 1050 | ||
| weight | 1 | Weight (without battery) | kg | 485 | |
| Wheel | 1 | Tyres | PU | ||
| 2 | Tyre size drive end | mm | Φ230×75 | ||
| 3 | Type size load end | mm | Φ150×60 | ||
| 4 | Balancing wheel size | mm | Φ100×50 | ||
| 5 | Wheels number (x=drive wheel) drive end/load end | 1x-2/4 | |||
| 6 | Tread width drive end | mm | 568 | ||
| 7 | Tread width load end | mm | 300 | ||
| Dimensions | 1 | Total height(Pedestrian/Standing on) | h1mm | 1410/1340 | |
| 2 | Lift height | h3mm | 376 | ||

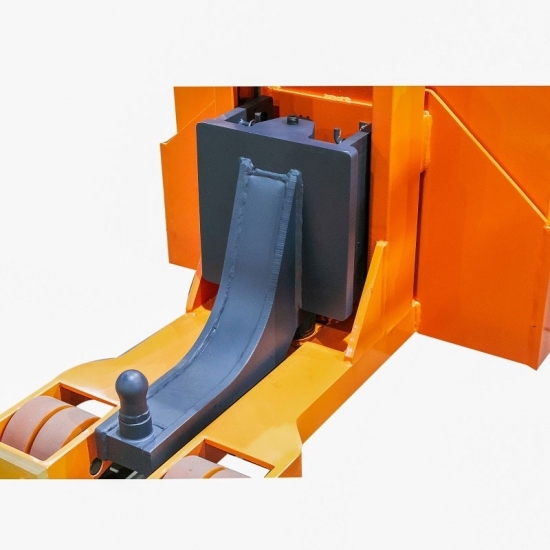

| 3 | Height of Drawing head | h5mm | 206 | ||
| 4 | Diameter of Drawing head | Dmm | 50 | ||
| 5 | Height of handle in drive position (Max/Min) | h6mm | 1410/1192 | ||
| 6 | Overall length（Pedestrian） | L1mm | 1331 | ||
| 7 | Overall width | b1mm | 850 | ||
| 8 | Minimum ground clearance | M mm | 70 | ||
| 9 | Turning radius | Wa mm | 1352 | ||
| Performance | 1 | Travel speed loaded/unloaded | km/h | 4.8/6 | |
| 2 | Lift speed loaded/unloaded | mm/s | 28/40 | ||
| 3 | Lowering speed loaded/unloaded | mm/s | 45/40 | ||
| 4 | Max gradeability loaded/unloaded | % | 5/8 | ||
| 5 | Service brake | Electromagnetic | |||
| Electric Motor | 1 | Drive motor rating | kw | 2 | |
| 2 | Lift motor rating | kw | 2.2kw | ||
| 3 | Battery voltage / nominal capacity | V/Ah | 24/240 | ||
| 4 | Battery weight | kg | 210 | ||
| Others | 1 | Type of drive control | MOSFET Control | ||
| 2 | Noise level at operator’s ear | dB(A) | <70 | ||
