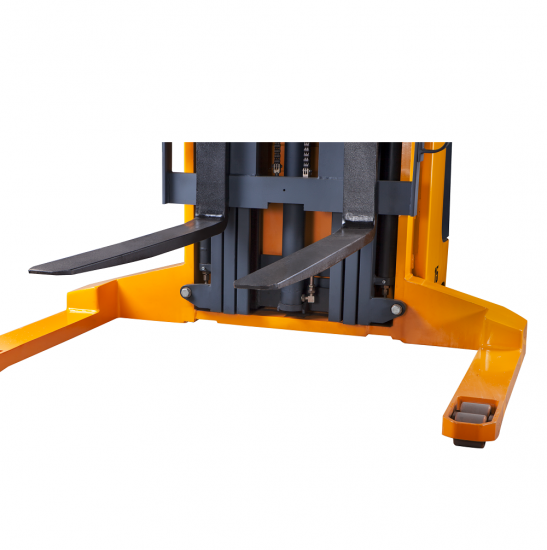

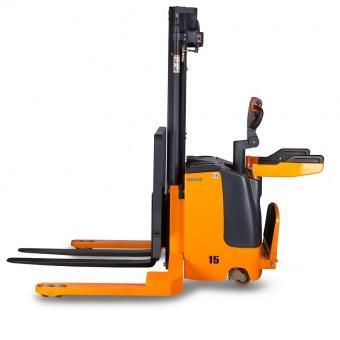

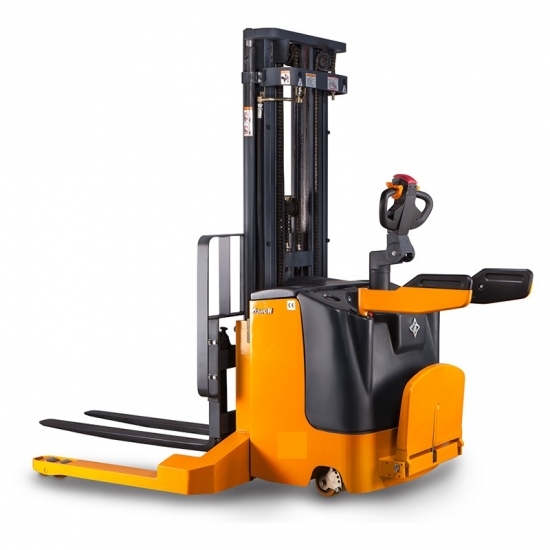

| 1.5 ton Electric Straddle Stacker | ||||
| Identification | Product model | XEK15 | ||
| Power supply | Electric | |||
| Operating type | Standing | |||
| Load capacity | Q kg | 1500 | ||
| Load center distance | C mm | 600 | ||
| Load distance | X mm | 280 | ||
| Wheelbase | Y mm | 1329 | ||
| Weight | Weight(without battery) | kg | 942 | |
| Axle loading, loaded drive end / load end |
kg | 843/1799 | ||
| Axle loading,unloaded drive end / load end |
kg | 767/375 | ||
| Dimensions | Height with mast closed | h1 mm | table 1 | |
| Free lifting height | h2 mm | table 1 | ||
| Lifting height | h3 mm | table 1 | ||
| Max height, max fork height | h4 mm | table 1 | ||
| Forks height, lowered | h5 mm | 35 | ||
| Height of handle in drive position (Max/Min) | h6 mm | 1396/1136 | ||
| Overall length | L1 mm | 2003 | ||
| Length to face of forks | L2 mm | 934 | ||
| Inside width at the end of leg | b2 mm | 1270 | ||
| Overall width | b1 mm | 1510 | ||
| Fork dimensions | s/e/l mm | 100/35/1070 | ||
| Forks width | b3 mm | 200-800 | ||
| Min. ground clearance | m mm | 30 | ||
| Aisle width for pallets 800x1200 lengthways | Ast mm | 2587 | ||
| Turning radius | Wa mm | 1626 | ||
| Electric Motor | Drive motor rating | kw | AC 1.5 | |
| Lift motor rating | kw | 2.2 | ||
| Battery voltage / nominal capacity | V/Ah | 24/210(210\240\280) | ||
| Battery weight | kg | 200\205\295 | ||
