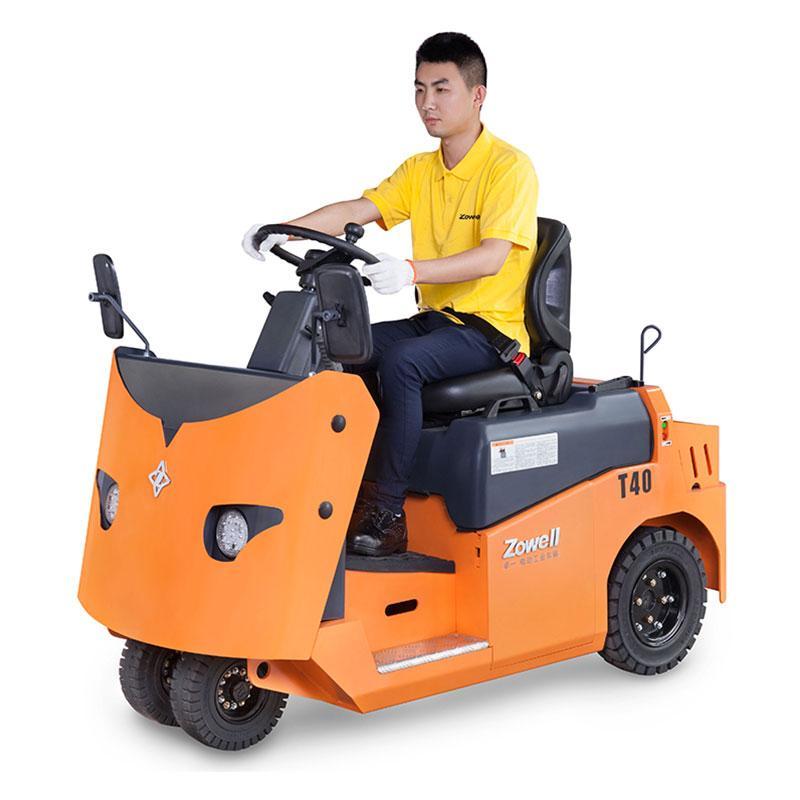

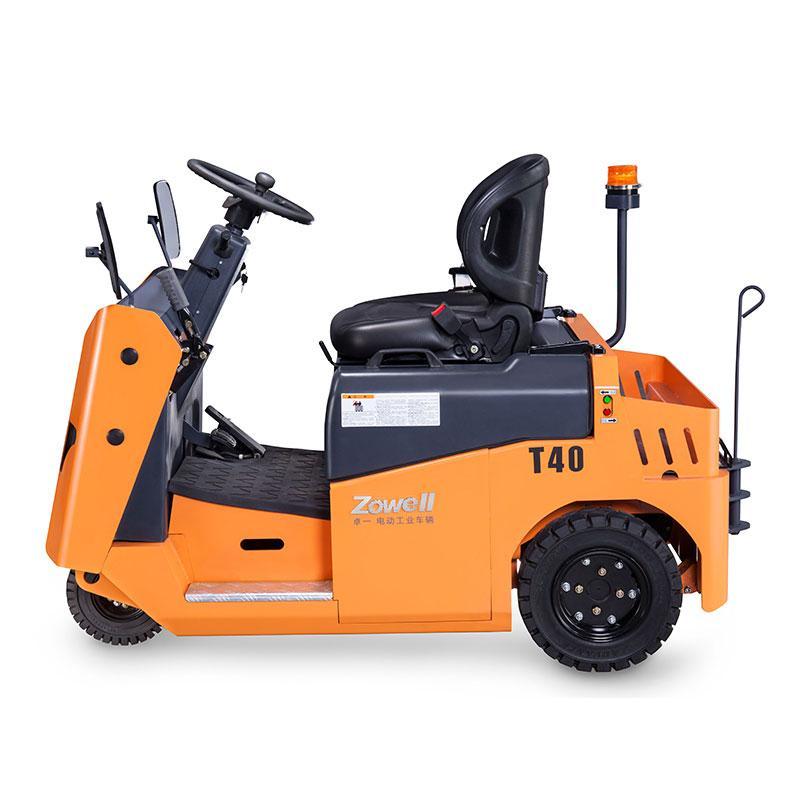

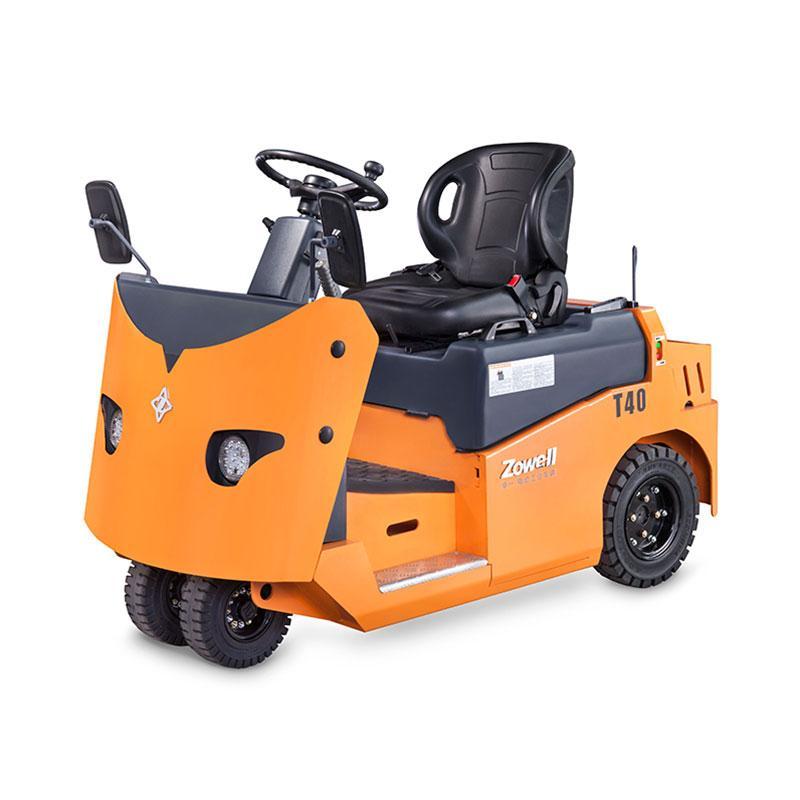

4 ton Electric Tow Tractor
Features
1.Wheelbase provides a tight turning radius for maximum maneuverability and control in confined work environments.
2.Rear bridge drive unit provides this 4 ton tow tractor with excellent power and gradeability.
3.Ergonomically designed compartment allows easy operation of all controls and pedals to help reduce operators' fatigue.
4.This electric tow tractor is equipped with forward lever or reverse lever and floor-mounted accelerator pedal.which provide fast and easy direction control changes.
5.zowell 4 ton tow tractor is installed with heavy duty
suspension seat with arms, multi-angle back support,sliding base and safety belt. This can improve operators'comfort and safety.
6.Low step height allows for easy entry and exit.
7.Small-diameter steering wheel provides effortless steering of this electric tow tractor.
| 1.1 | Manufacturer | ZOWELL | ||
| 1.2 | Manufacturer's type designation | XTA40 | ||
| 1.3 | Drive | Battery | ||
| 1.4 | Operator type: hand, pedestrian, stand-on, seat-on, order-picker | Seat-on | ||
| 1.5 | Load capacity/rated load | Q (t) | 4 | |
| 1.7 | Rated drawbar pull | F (N) | ≥F | 1000 |
| 1.9 | Wheelbase | y (mm) | ±1% | 1231 |
| 2.1 | Dead weight | kg | ±3% | 783 |
| 2.3 | Axle loading, unladen front/rear | kg | ±3% | 279/504 |
| 3.1 | Tyres | Pneumatic tire | ||
| 3.2 | Tyre size, front | Ø x w(mm) | 3.50-5-6PR | |
| 3.3 | Tyre size, rear | Ø x w(mm) | 4.00-8-6PR | |
| 3.5 | Wheels, number front/rear (x = driven wheels) | 1/2x | ||
| 3.6 | Tread , front | b10 (mm) | ±2% | 245 |
| 3.7 | Tread , rear | b11 (mm) | ±2% | 744 |
| 4.7 | Height of overhead guard(cabin) | h6 (mm) | ±1% | 1232 |
| 4.8 | Seat height relating to SIP/stand height | h7 (mm) | 816/412 | |

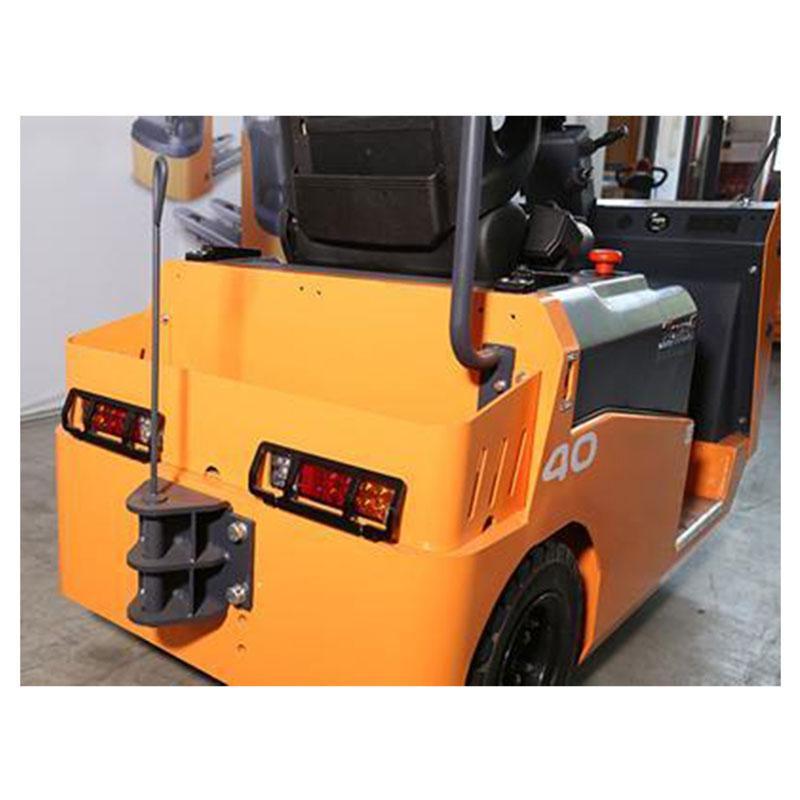

| 4.12 | Coupling height | h10 (mm) | ±2% | 283/333/358/408 |
| 4.19 | Overall length | l1 (mm) | ±1% | 1876 |
| 4.21 | Overall width | b1/b2 (mm) | ±1% | 860 |
| 4.32 | Ground clearance, centre of wheelbase | m2 (mm) | -5% | 92 |
| 4.33 | Load dimension b 12 × l 6 crossways | b 12 × l 6 (mm) | 1447 | |
| 4.35 | Turning radius | Wa (mm) | ≤Wa | 1590 |
| 5.1 | Travel speed, laden/unladen | km/h | ± 10 % | 7/13 |
| 5.5 | Drawbar pull,laden/unladen | N | 1000 | |
| 5.6 | Max. drawbar pull, laden/unladen | N | 4000 | |
| 5.7 | Gradeability, laden/unladen | % | 5.6/14 | |
| 5.10 | Service brake | Hydraulic | ||
| 6.1 | Drive motor rating | kW | 4 | |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | Special case | ||
| 6.4 | Battery voltage/nominal capacity | V/Ah | 24/280 | |
| 6.5 | Battery weight | kg | 285 | |
| 8.1 | Type of drive control | AC | ||
| 10.7 | Noise | dB (A) | < 70 |
