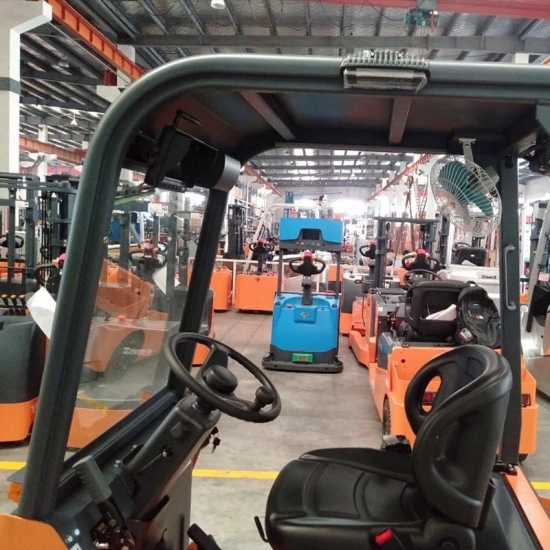

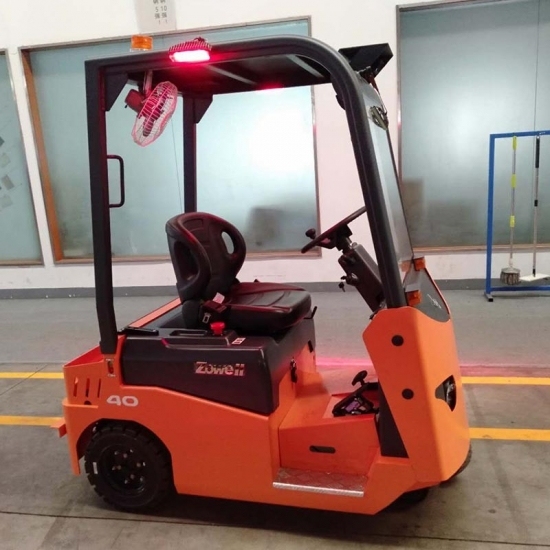

4 ton Electric Tow Tractor
Features
Operating type: Sit-on
Traction weight :4000kgs
Drive motor:3.0kW AC
Battery: 24V/280AH
One front solid wheel and two rear pneumatic tyres
| Specification for XTA40 4 ton Electric Towing Tractor | |||||
| Characteristics | 1.1 | Manufacturer | ZOWELL | ||
| 1.2 | Manufacturer's type designation | XTA40 | |||
| 1.3 | Drive | Battery | |||
| 1.4 | Operator type: hand, pedestrian, stand-on, seat-on, order-picker | Seat-on | |||
| 1.5 | Load capacity/rated load | Q (t) | 4 | ||
| 1.7 | Rated drawbar pull | F (N) | ≥F | 1000 | |
| 1.9 | Wheelbase | y (mm) | ±1% | 1231 | |
| Weight | 2.1 | Dead weight | kg | ±3% | 783 |
| 2.3 | Axle loading, unladen front/rear | kg | ±3% | 279/504 | |
| Tyres/chassis | 3.1 | Tyres | Pneumatic tire | ||
| 3.2 | Tyre size, front | Ø x w(mm) | 3.50-5-6PR | ||
| 3.3 | Tyre size, rear | Ø x w(mm) | 4.00-8-6PR | ||
| 3.5 | Wheels, number front/rear (x = driven wheels) | 1/2x | |||
| 3.6 | Tread , front | b10 (mm) | ±2% | 245 | |
| 3.7 | Tread , rear | b11 (mm) | ±2% | 744 | |
| Dimension | 4.7 | Height of overhead guard(cabin) | h6 (mm) | ±1% | 1232 |
| 4.8 | Seat height relating to SIP/stand height | h7 (mm) | 816/412 | ||
| 4.12 | Coupling height | h10 (mm) | ±2% | 283/333/358/408 | |
| 4.19 | Overall length | l1 (mm) | ±1% | 1876 | |
| 4.21 | Overall width | b1/b2 (mm) | ±1% | 860 | |
| 4.32 | Ground clearance, centre of wheelbase | m2 (mm) | -5% | 92 | |
| 4.33 | Load dimension b 12 × l 6 crossways | b 12 × l 6 (mm) | 1447 | ||
| 4.35 | Turning radius | Wa (mm) | ≤Wa | 1590 | |
| Performance | 5.1 | Travel speed, laden/unladen | km/h | ± 10 % | 7/13 |
| 5.5 | Drawbar pull,laden/unladen | N | 1000 | ||
| 5.6 | Max. drawbar pull, laden/unladen | N | 4000 | ||
| 5.7 | Gradeability, laden/unladen | % | 5.6/14 | ||
| 5.10 | Service brake | Hydraulic | |||
| Electric-engine | 6.1 | Drive motor rating | kW | 4 | |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | Special case | |||
| 6.4 | Battery voltage/nominal capacity | V/Ah | 24/280 | ||
| 6.5 | Battery weight | kg | 285 | ||
| Addition | 8.1 | Type of drive control | AC | ||
| 10.7 | Noise | dB (A) | < 70 | ||
