Electric Multi-directional Forklift with 4 Forks

No.RSEW130

Zowell RSEW series 3 ton electric multi-directional forklift is one product suitable for moving long cargo whose length is within 10.5m.It adopts thumb switch and proportional function to make the truck more stable and low noise during operation.Its maxium lifting height is up to 10.5m.It cannot only be used to replace the normal forklist,but also drive in multiple directions.

Variations

Edit selections

Brand: Zowell

Zowell

Item NO.: RSEW130

RSEW130

Color: Orange color(Customized color is also acceptable)

Orange color(Customized color is also acceptable)

Shipping Port: Shanghai,China

Shanghai,China

Select variations and quantity

Brand: Zowell

Zowell

Item NO.: RSEW130

RSEW130

Color: Orange color(Customized color is also acceptable)

Orange color(Customized color is also acceptable)

Shipping Port: Shanghai,China

The min. inquiry quantity is 0. Add 0 more to continue.

Shanghai,China

Subtotal

GET A QUOTE

Download

View all downloads

Description

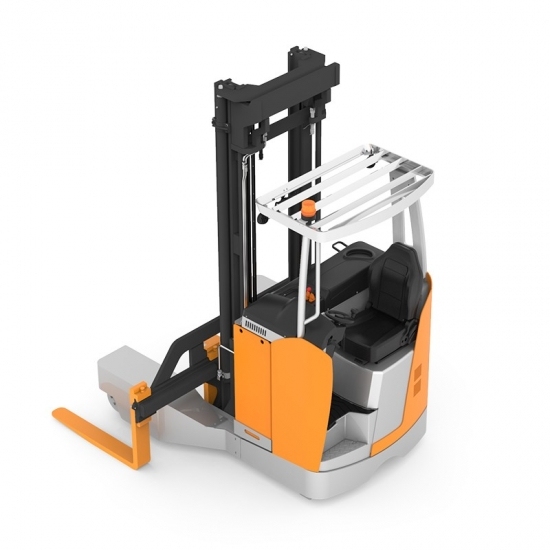

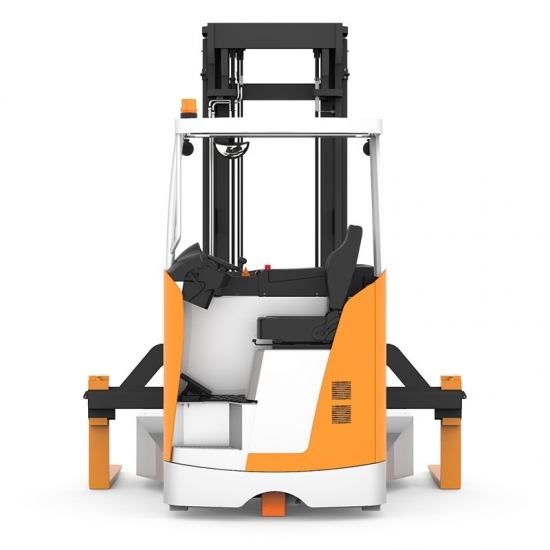

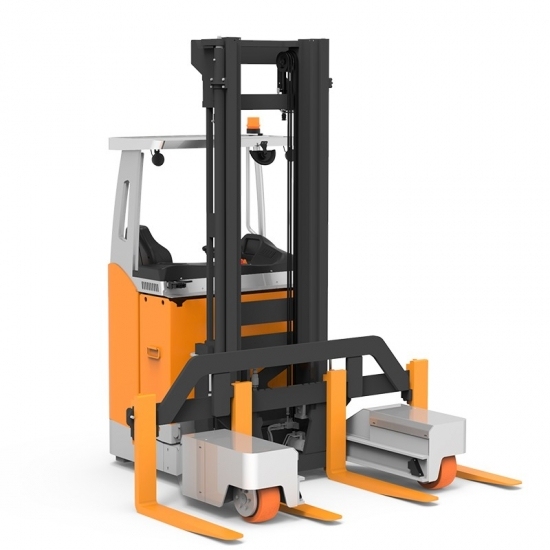

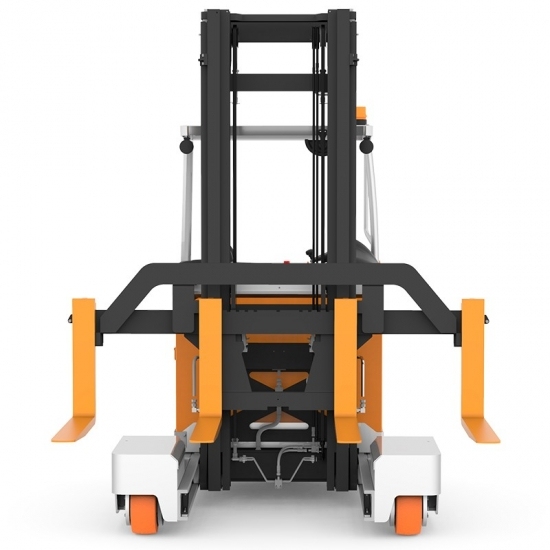

3 ton Electric Multi-directional Forklift with Four Fork

Four forks + wide fork
Fork length is optional, the maximum fork outer distance is 2300mm; it can be customized;
It is suitable for long cargos and fix goods length.
Advantages: low cost, simple structure, no additional aisle width.

Straight mode
Features: Drive single-wheel steering (the angle of the two front wheels remains unchanged, and the rear drive wheel controls the steering)
Application: In this mode, the function is the same as that of an ordinary reach truck.

Sidewalk mode
Features: Sideways driving (90° full wheel rotation)
Application: Long material handling and stacking in extremely narrow passages greatly increase storage capacity.

In-situ rotation mode
Features: 180° U-turn in place
Application: U-turn in the tunnel to improve handling efficiency.
All-wheel steering mode
Features: all-wheel independent steering

Application: Right-angle turning, cornering, obstacle avoidance.

Minimum right angle steering
Feature: Overturn of 90 with the smallest aisle width
Application: Turning in extremely narrow passages.

▶▶▶The minimum right-angle turning mode is integrated in the all-wheel steering mode, and automatically switches to the minimum right-angle turning mode after the steering wheel is deadlock.

Specification

Electric Multi-directional Forklift with 4 Forks
