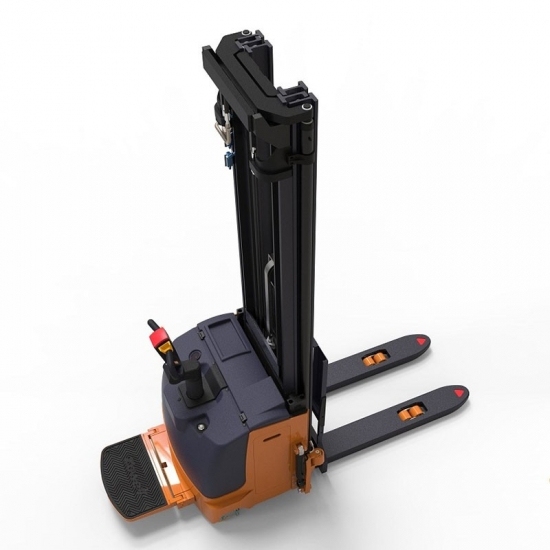

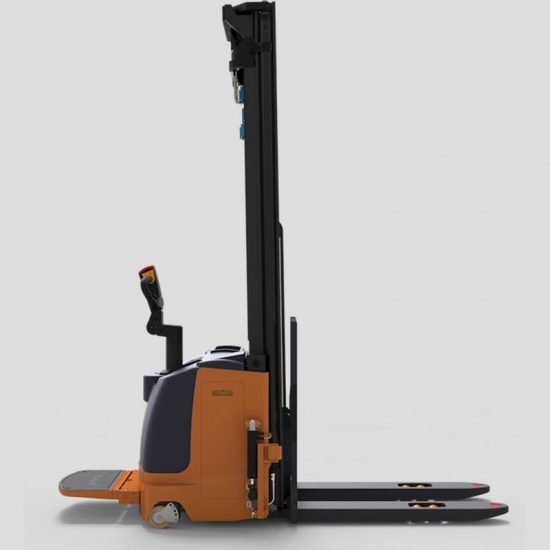

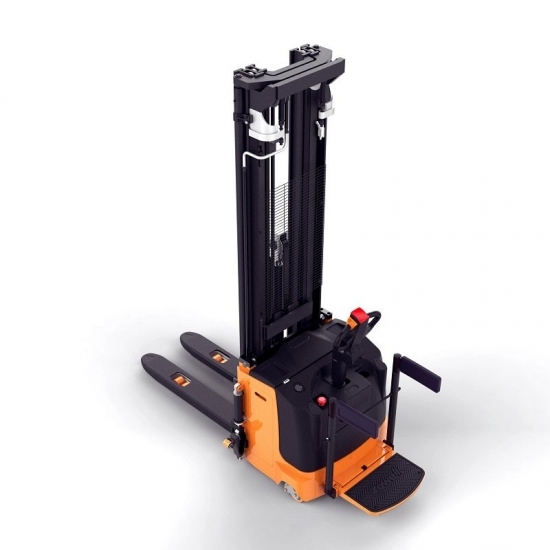

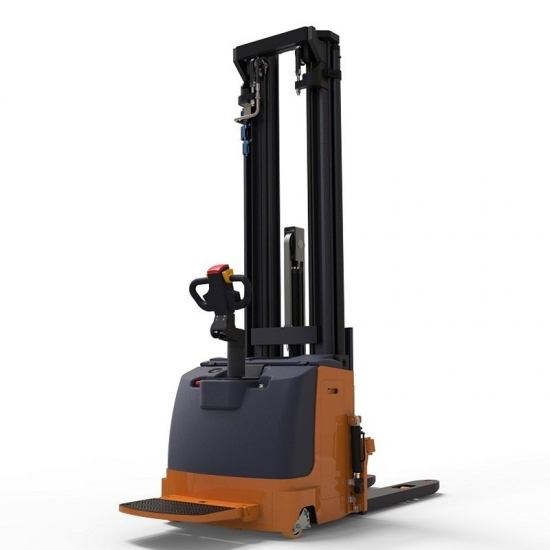

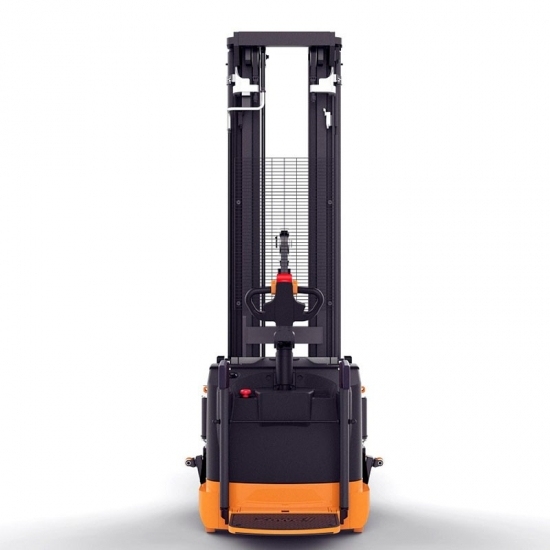

| XEHA20 Technical data for 2 ton Electric Stacker | |||
| Specification | Product model | XEHA20 | |
| Power supply | Electric | ||
| Operating type | Standing on | ||
| Load capacity | Q kg | 2000 | |
| Load center distance | C mm | 600 | |
| Load distance | X mm | 455 | |
| Wheelbase | Y mm | 1392 | |
| Dimension | Total height（fork height lowest) | h1 mm | 2820 |
| Free lift | h2 mm | 1733 | |
| Lifting height | h3 mm | 6800 | |
| Maxim height(Fork height highest) | h4 mm | 7794 | |
| Fork height(lowerest） | h5 mm | 86 | |
| Height of handle in drive position (Max/Min) | h6 mm | 1396/1136 | |
| Overall length | L1 mm | 2118 | |
| Overall width | b1 mm | 1186 | |
| Fork dimensions | s/e/l mm | 180/66/1150 | |
| Fork width | b2 mm | 680 | |
| Mimum ground clearance | m mm | 30 | |
| Aisle width for pallets 800x1200 lengthways | Ast mm | 2529 | |
| Aisle width for pallets 1000x1200 lengthways | Ast mm | 2595 | |
| Turning radius | Wa mm | 1688 | |
| Motor | Drive motor rating | kw | AC 1.5 |
| Lift motor rating | kw | 4.5 | |
| Battery voltage / nominal capacity | V/Ah | 24/280 | |
| Battery weight | kg | 205\295\300 | |
