1. Multifunctional meter
Multifunctional meter can display integrated electricity power level, working time and failure code. The operators can know the running condition of the stacker via the meter.
2. Emergency power-off switch
The power can be rapidly cut off in emergency to ensure safety.
3. Safety protection
The soft PU armrest features superior resistance to compression and impact, thus reducing indirect injuries caused by stacker operation. This provides safety protection as well as comfort for the operators.

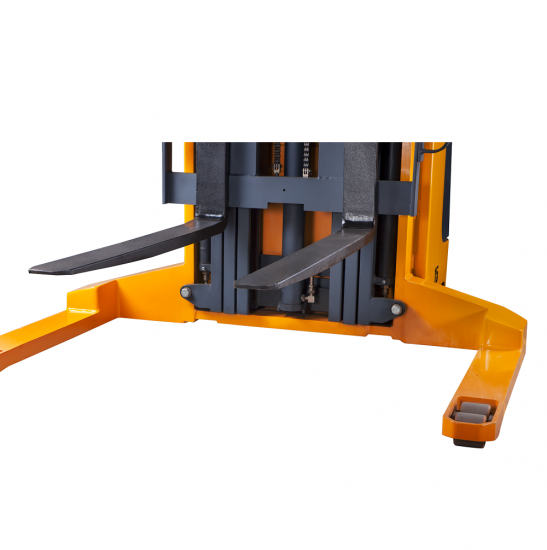

4. Forged fork
The width of the fork can be adjusted within the range of 200-800mm. It is suitable for working conditions with single side pallet or double side pallet.
5. Lifting height limit
The lifting height of this reach truck can be up to 3m. It is precisely controlled.
6. Side loading and unloading of storage battery
Side loading and unloading of storage battery can realize easy maintenance and battery swapping.
| Specification for 2 ton Electric Straddle Stacker | ||||
| Identification | Product model | XEK20 | ||
| Power supply | Electric | |||
| Operating type | Standing | |||
| Load capacity | Q kg | 2000 | ||
| Load center distance | C mm | 600 | ||
| Load distance | X mm | 393 | ||
| Wheelbase | Y mm | 1386 | ||
| Dimensions | Height with mast closed | h1 mm | 2055 | |
| Free lifting height | h2 mm | 0 | ||
| Lifting height | h3 mm | 3000 | ||
| Max height, max fork height | h4 mm | 3991 | ||
| Forks height, lowered | h5 mm | 40 | ||
| Height of handle in drive position (Max/Min) | h6 mm | 1390/1130 | ||
| Overall length | L1 mm | 2051 | ||
| Length to face of forks | L2 mm | 988 | ||
| Inside width at the end of leg | b2 mm | 1270 | ||
| Overall width | b1 mm | 1510 | ||
| Fork dimensions | s/e/l mm | 100/40/1070 | ||
| Forks width | b3 mm | 200-800 | ||
| Min. ground clearance | m mm | 30 | ||
| Aisle width for pallets 800x1200 lengthways | Ast mm | 2643 | ||
| Turning radius | Wa mm | 1682 | ||
