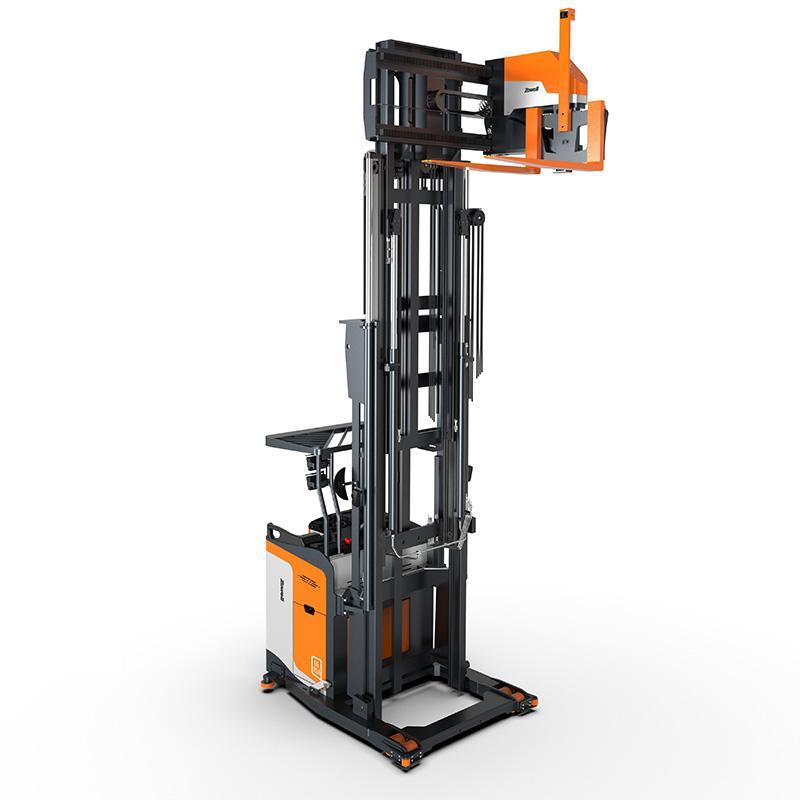

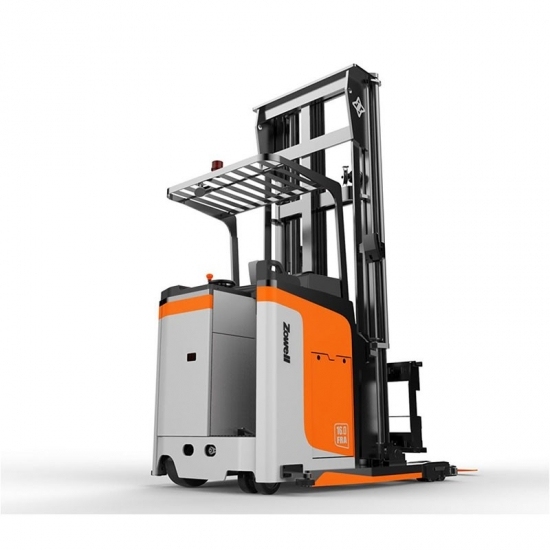

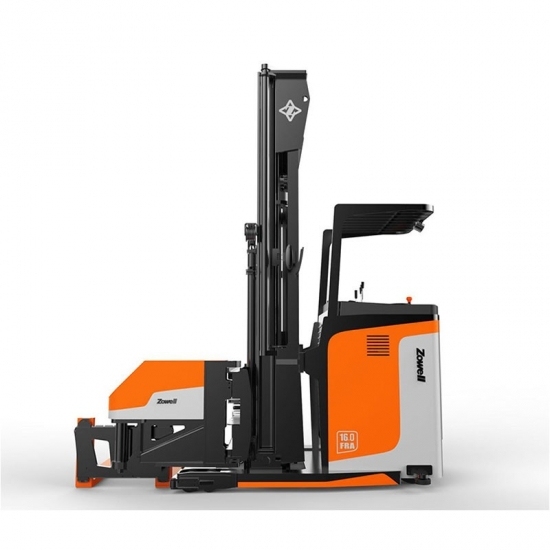

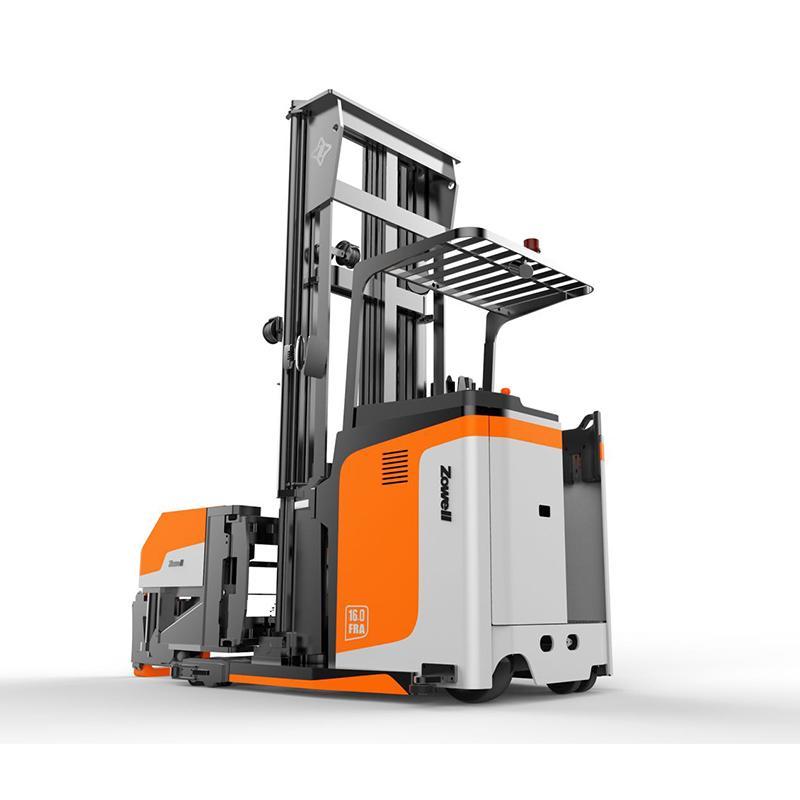

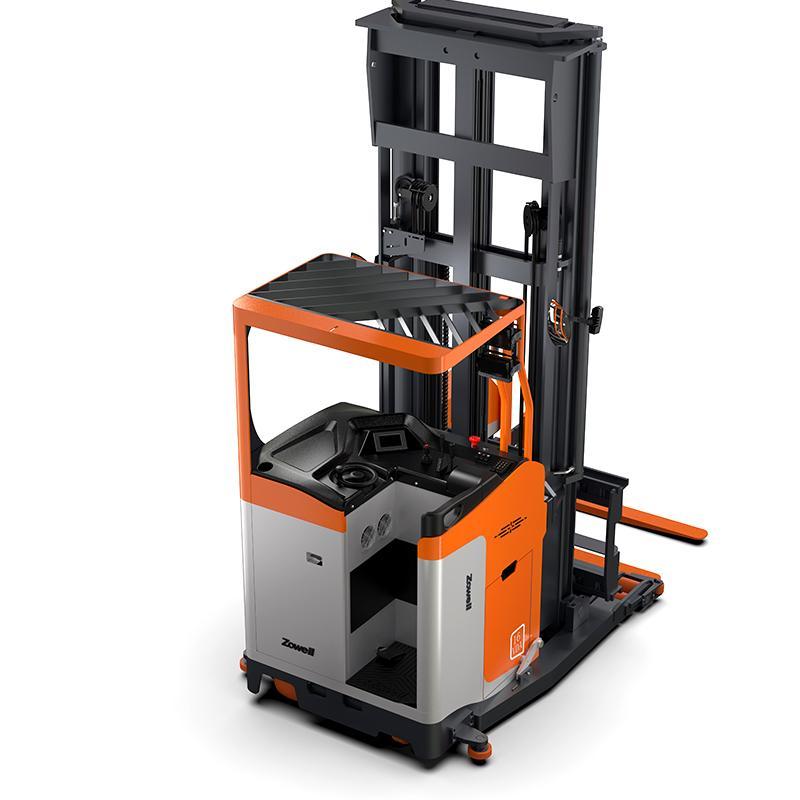

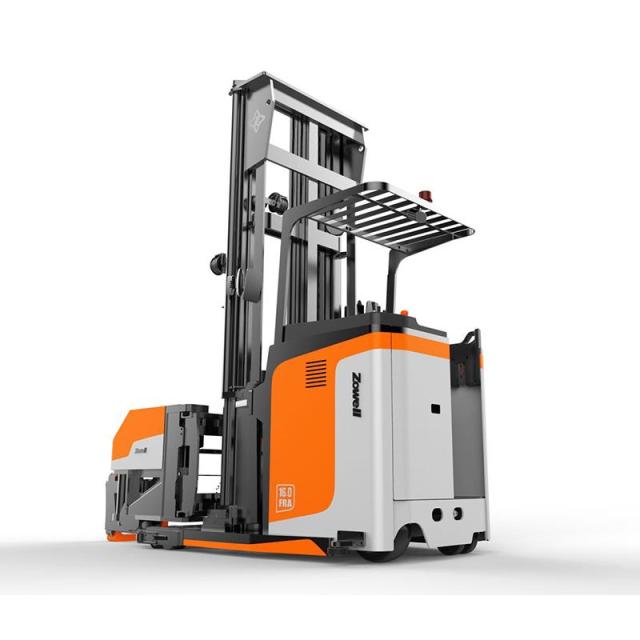

1.6 ton Man Down Type Tri-lateral Electric VNA Forklifts
1. With Zowell Tri-laterial forklift, you can handle with more pallets and reach higher in very narrow aisle then gain more storage capacity.
2. It is fitted with full AC technology system makes the forklifts response rapidly and achieve accurate control, increase forklifts’ life, and reduce energy consumption.
3. Equipped with electric power assistant steering make you a great driving feeling and reduce fatigue to increase safety and stability.
4. Imported gear pump and fully-buffered hydraulic cylinder let the whole vehicle move smoothly, reduce pressure loss and noise along the way.
5. AC controllers can realize precise control,easy to set up the parameters and decrease the failures.
6. Totally imported hydraulic hose, with wear and tension resistance, and longer service life.
7. Cast-steel driving wheel assembling compartment featured with lower noise and high-strength PU wheels brings your more stable and reliable operation.
8. Real-time HD display is easy to slightly adjust the direction of the driving wheel in narrow aisle, it brings your unmatched safety.
9. Large-capacity battery is powerful,safe,stable and easy to charge with long cycle life.
10. Equipment with imported high-strength mast.
Safety:Fork position locking
When the forklift and fork head are not in the basic position, the truck is actively locked to prevent danger.

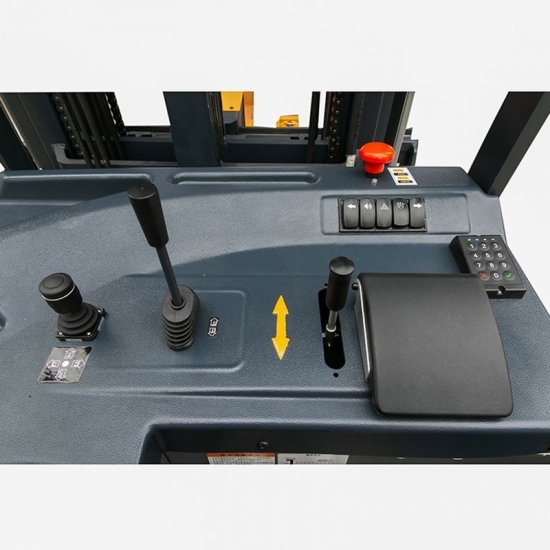

Stability:Thumb switch and proportional function
Lowering and lifting speed is adjustable.
Visibility:Fork camera and laser line
High efficiency:Big battery capacity and lithium battery is optional
| Identification | 1.1 | manufacture | Zowell | |
| 1.2 | Brand | Zowell | ||
| 1.3 | Model | VDA116S | ||
| 1.4 | Power supply | Electric | ||
| 1.5 | Driving type | Standing on | ||
| 1.6 | Load center | Q(kg) | 1600 | |
| 1.7 | Wheelbase | C(mm) | 600 | |
| 1.8 | Wheelbase | y(mm) | 1700 | |
| weight | 2.1 | Truck weight（Include battery） | kg | 5450 |
| 2.2 | Battery weight（±5%） | kg | 735 | |
| Tyres | 3.1 | Tyres type Front wheel/Rear wheel | PU | |
| 3.2 | Front load wheels（Diameter×width) | mm | φ140×127 | |
| 3.3 | Rear driving wheel（Diameter×width) | mm | φ380×165 | |
| 3.4 | Tyres quantity (Drive/Load wheel/univeral wheels) | pcs | 1X/4/2 | |
| dimensions | 4.1 | Lifting height | mm | 3000-9500 |
| 4.2 | Fork rotation degree | ° | 180 | |
| 4.3 | Mast closed height | h1(mm) | See table | |
| 4.4 | Overhead guard height | h5(mm) | 2260 | |
| 4.5 | Platform height for standing | (mm) | 355 | |
| 4.6 | Min ground clearance | h8(mm) | 45 | |
| 4.7 | Overall length （fork in side position） | l1(mm) | 2945 | |
| 4.8 | Overall width（with guide wheels） | b1(mm) | 1550 | |
| 4.9 | Fork dimensions | l/e/s(mm) | 1200/122/50 | |
| 4.10 | Rear chassis width | b2(mm) | 1190 | |
| 4.11 | Fork width | b5(mm) | 425-750 | |
| 4.12 | Min turning radidus(go straight) | Wa(mm) | 1980 | |
| 4.13 | Min main aisle size | （mm） | 3800 | |
| 4.14 | Min aisle width(length×width) 1200×1000 |
（mm） | 1600 |
