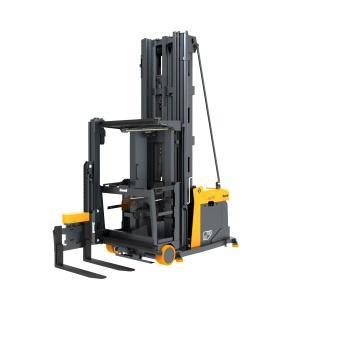

Zowell 1.6 ton Man up Electric VNA Forklifts
Advantages:
Significantly faster pallet handling in narrow aisle applications hence providing significant productivity gains.
Reduces operator error as they have a clear and view of the loads they are handling, reducing risk of racking damage.
Reduces aisle width to 1.75 metres, increasing warehouse holding capacity.
Highest racking solution up to 13.5 metres, compared to 8-12 metres for articulated forklift or reach trucks.
| Mamufacturer | Suzhou Pioneer | |||
| Product Brand | ZOWELL | |||
| Truck model | VUE116-135S | |||
| Identifications | 1.1 | Type of Mast | Triple Mast | |
| 1.2 | Drive Type | Electric | ||
| 1.3 | Operation Type | Trilateral Stacking | ||
| 1.4 | Load Capacity | kg | 1600 | |
| 1.5 | Load Capacity | mm | 600 | |
| 1.6 | Drive Type | Sit on | ||
| 1.7 | Wheelbase | mm | 2080 | |
| Weight | 2.1 | Dead weight(with battery) | kg | 9280 |
| Tyre | 3.1 | Type of wheel | PU | |
| 3.2 | Driving wheel size | mm | φ400×160 | |
| 3.3 | Front size | mm | φ165xl45 | |
| 3.4 | Wheel qty(X=driving wheel) | lx / 4 | ||
| Dimension | 4.1 | Height with mast closed | mm | 5318 |
| 4.2 | Free Lift Height | mm | 4153 | |
| 4.3 | Sub lifting height | mm | 1520 | |
| 4.4 | Lifting height | mm | 13500 | |
| 4.5 | Overall height with mast extended | mm | 14665 | |
| 4.6 | Cab Height | mm | 2100 | |
| 4.7 | Overall length (Forks sideways / forks facing forward) | mm | 3818 / 4790 | |
| 4.8 | Overall width | mm | 1500 | |
| 4.9 | Fork dimensions | mm | 122x50x1200 | |
| 4.10 | Fork class/type | 2/A | ||
| 4.11 | Overall Fork Width | mm | 297-750 | |
| 4.12 | Clearance height | mm | 80 | |
| 4.13 | Turning Radius | mm | 2356 | |
| 4.14 | Pallet Width | mm | 1000 | |
| 4.15 | Pallet Length | mm | 1200 | |
| 4.16 | Working Aisle width | mm | 1750 | |
| 4.17 | Main Aisle width | mm | 5000 |
